Micro and Nano-D connectors

Miniature microelectronic applications with a minimum amount of available space need miniaturized circular and rectangular connectors with the highest possible contact density on the PCBs, between the PCBs, with cables or as an I/O connector installed on housings. The connectors are qualified to MIL-DTL-83513 or MIL-DTL-32139 or manufactured accordingly.

Our delivery range is supplemented by cable glands and coding hardware, backshells and protective caps as well as by special hybrid designs with signal, power and coax contacts and bespoke designs.

Examples:

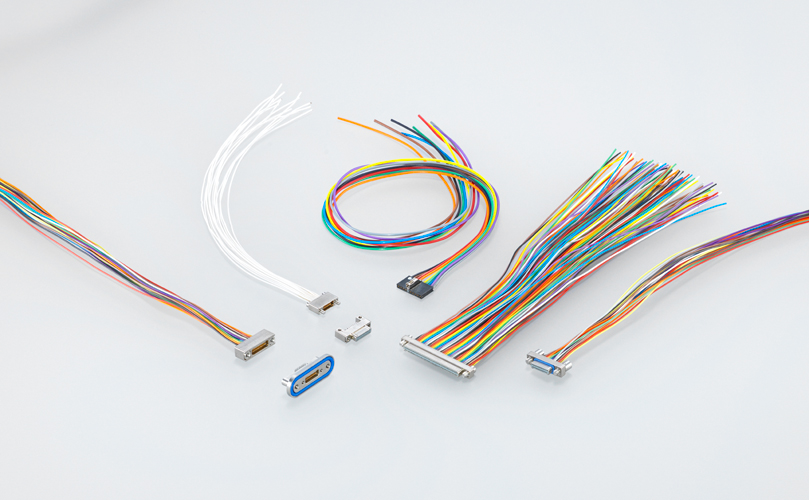

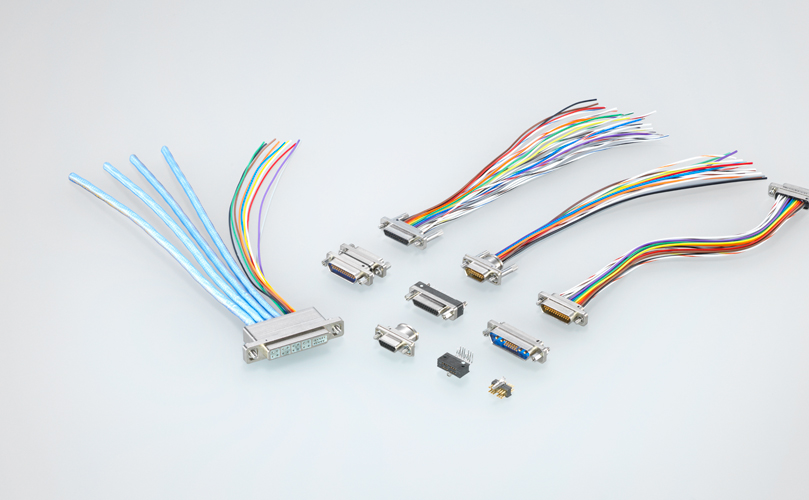

• 1 to 4 row connectors to MIL-DTL-83513 with higher signal integrity, metal or plastic housing
• 1 or 2 row connector to MIL-DTL-32139, metal housing

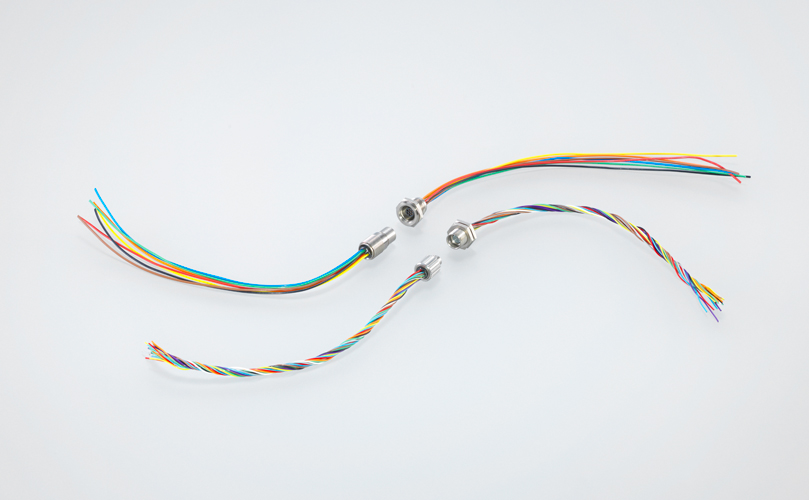

• Nano circular connectors, metal housings, push-pull or screw locking
• Micro circular connectors, metal housings, push-pull locking
